MasterLine 10

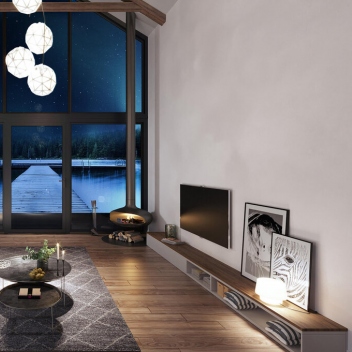

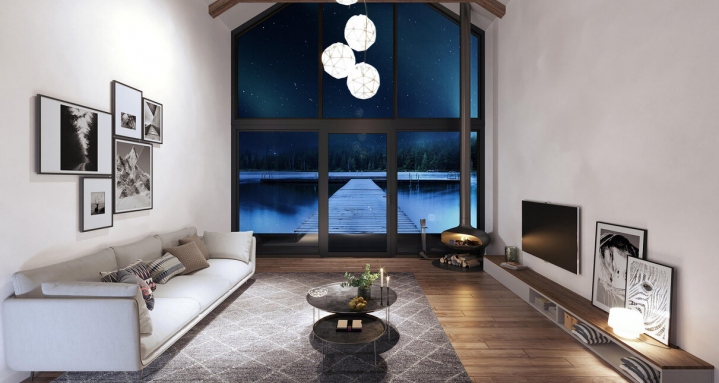

MasterLine 10 doors have been designed for low-energy and passive buildings without a compromise on design, daylight access or even safety.

MasterLine 10 doors are available in 2 different compositions, as rebate doors or as flush doors. The rebate doors feature design variants such as Renaissance or Deco and can be used as Balcony Doors as well. Flush Doors are designed to be used in public buildings where there is a bigger demand for durable, robust doors.

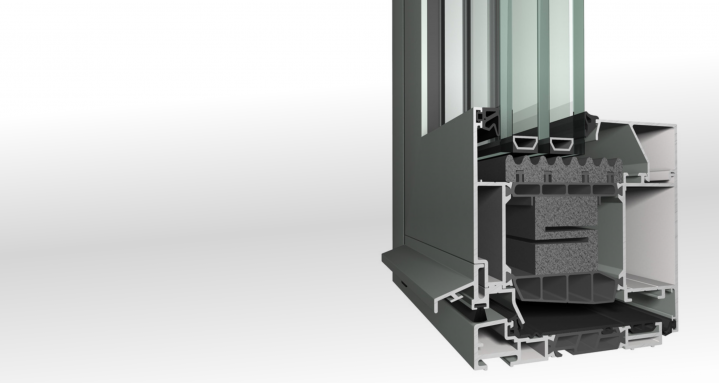

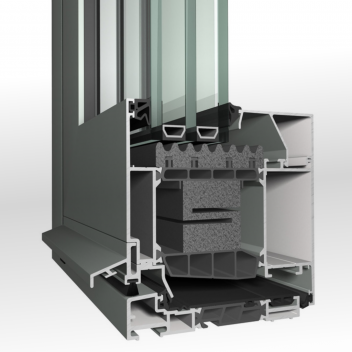

 Both solutions feature the best water performances, draft reduction and thermal properties with patented technology, such as the improved thermal break and drainage concept.







Comfort



Air tightness max. test pressure 4 (600 Pa)
Water tightness 9A (600 Pa)
Wind load resistance C3 (1200 Pa)



Energy



Thermal insulation (Uf) 0,79 W/m²K
Min. Visible width frame: inward opening 60 mm
Min. Visible width vent: inward opening 67 mm
Min. Visible width frame-vent: inward opening 134 mm
Min. Visible width frame: outward opening 27 mm
Min. Visible width frame-vent: outward opening 145 mm
Min. Visible width T-profile 87 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Max. weight vent (element) 130 kg
Overall system depth frame 97 mm
Overall system depth vent 107 mm
Rebate height 27 mm
Min. Glass thickness 20 mm
Max. Glass thickness 78 mm
Glazing method Dry glazing with EPDM or neutral silicones
