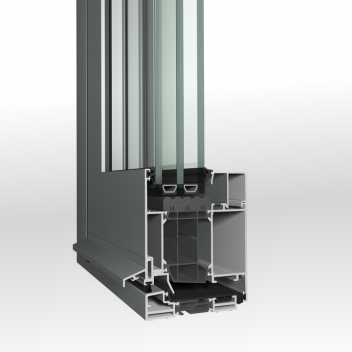

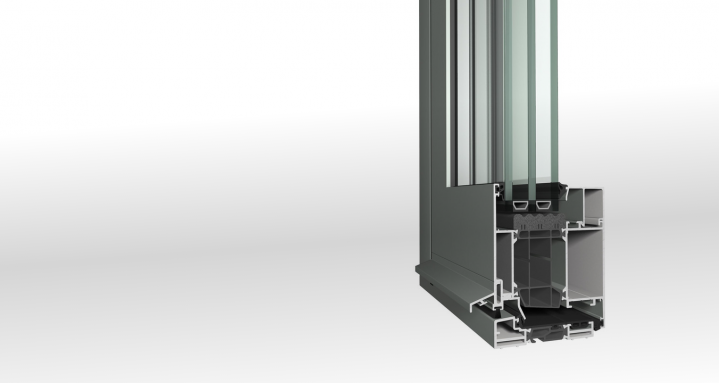

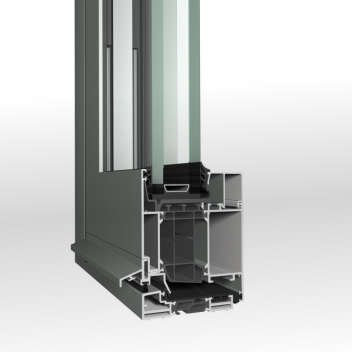

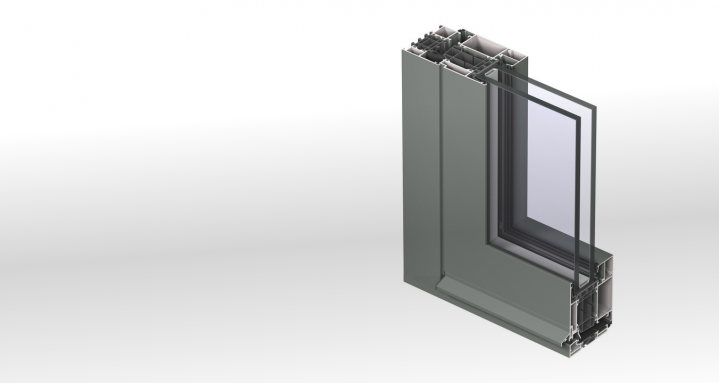

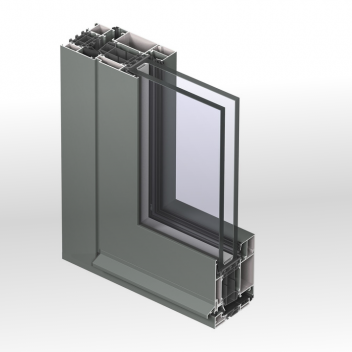

MasterLine 8 doors offer a wide range of highly insulated and robust flush doors, which meets the modern requirements.

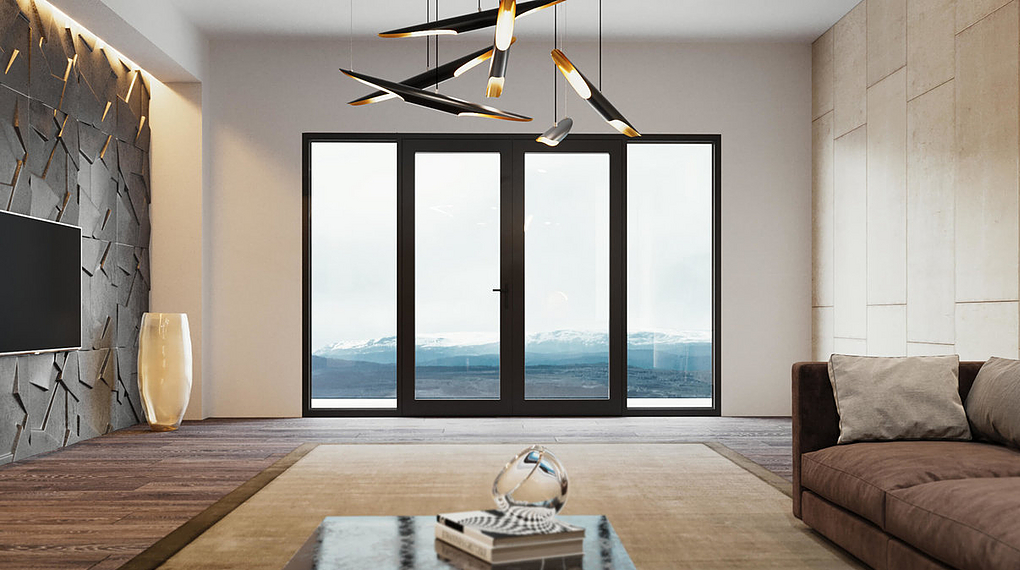

MasterLine 8 doors offer a wide range of highly insulated and robust flush doors, which meets the modern requirements with regard to safety, thermal insulation and stability, allowing the creation of large entrance doors. MasterLine doors are available as inward and outward opening glass or panel doors and pivoting doors are possible. All the doors can be fitted with a wide range of locks and hinges. MasterLine doors are designed to meet the modern comfort requirements. The excellent air tightness and superb thermal performances are proven by the Passive Housing certificate that is included in the system. With regard to safety and performance, the robust MasterLine doors can comply with burglar resistance class 3, large dimensions and weights up to 250kg and are proven to be extremely durable (class 8).
Comfort
Air tightness max. test pressure | 4 (600 Pa) |
Water tightness | 7A (300 Pa) |
Wind load resistance | C3 (1200 Pa) |
Acoustic performance | Rw(C;Ctr) = 43(-1;-4) dB |
Safety
Burglar resistance | RC2/WK2 RC3/WK3 |
Energy
Thermal insulation (Uf) | 153mm: HI 2,2 / HI+ 1,4 W/m²K 178,5mm: HI+ 1,3 W/m²K |
Min. Visible width frame: inward opening | 68.5 mm |
Min. Visible width vent: inward opening | 78.5 mm |
Min. Visible width frame-vent: inward opening | 153 mm |
Min. Visible width frame: outward opening | 42.5 mm |
Min. Visible width frame-vent: outward opening | 104.5 mm |
Min. Visible width T-profile | 80 mm |
Max. height vent | 3000 mm |
Max. width vent | 1400 mm |
Max. weight vent (element) | 250 kg |
Overall system depth frame | 77 mm |
Overall system depth vent | 77 mm |
Rebate height | 27 mm |
Min. Glass thickness | 4 mm |
Max. Glass thickness | 58 mm |
Min. Glass thickness vent | 4 mm |
Max. Glass thickness vent | 58 mm |
Glazing method | Dry glazing with EPDM or neutral silicones |
Thermal break | Omega Shaped Fibreglass |
