CS 59
-
Concept for insulation

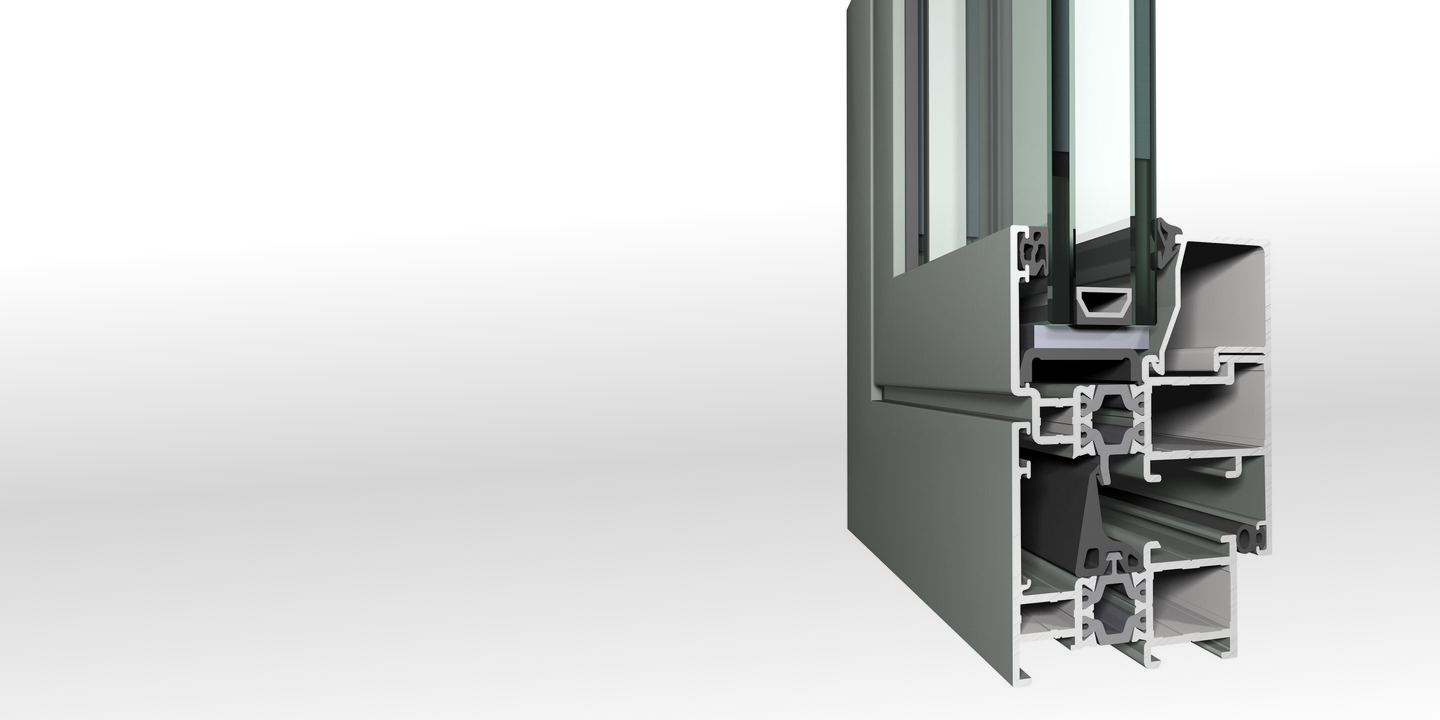

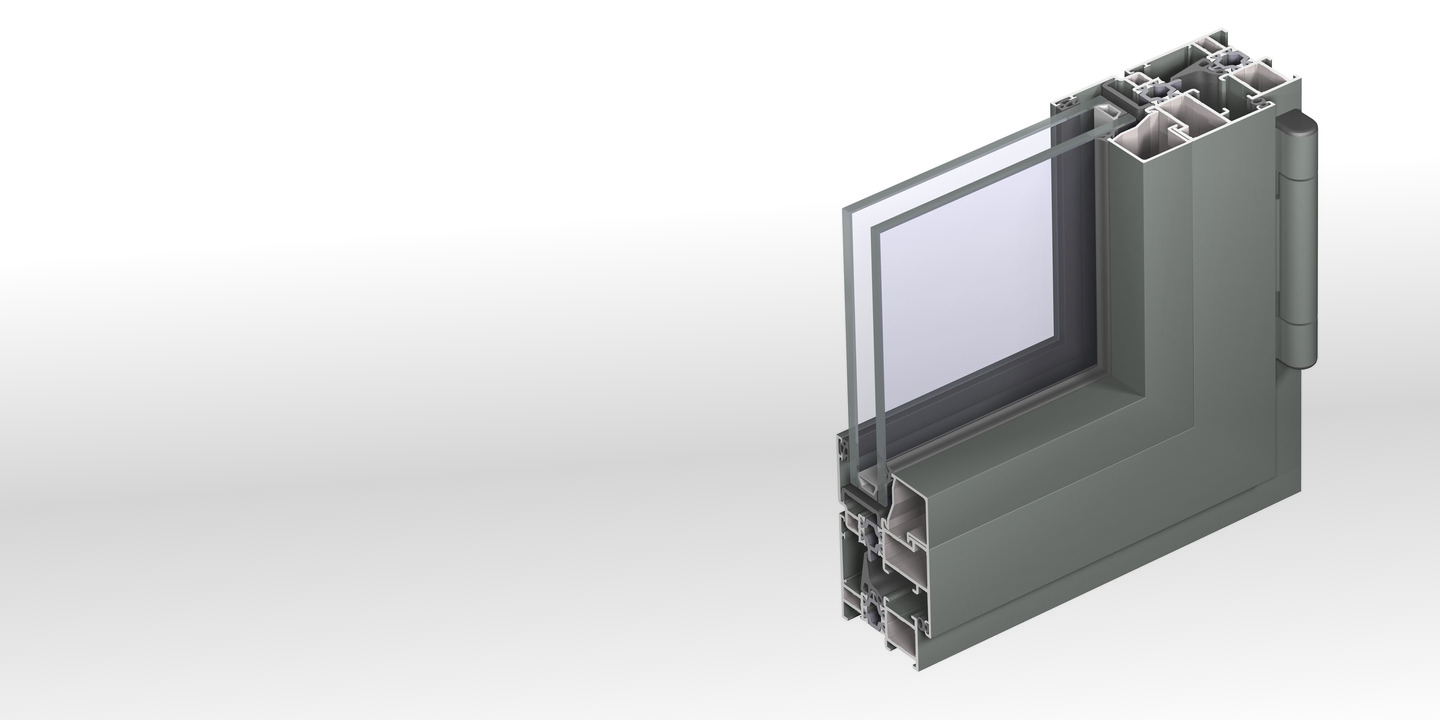

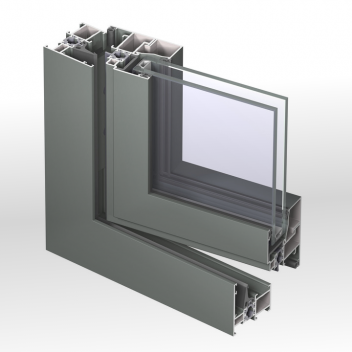

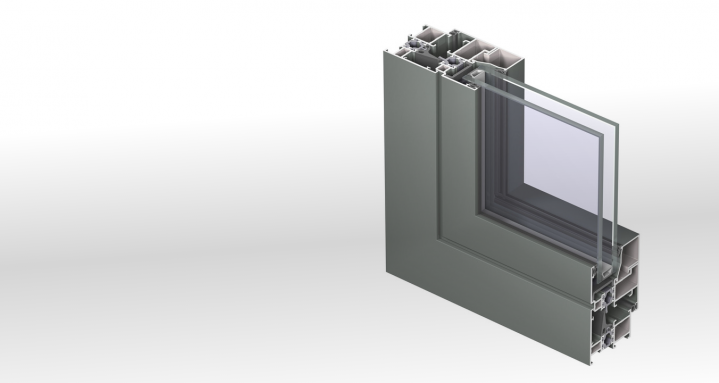

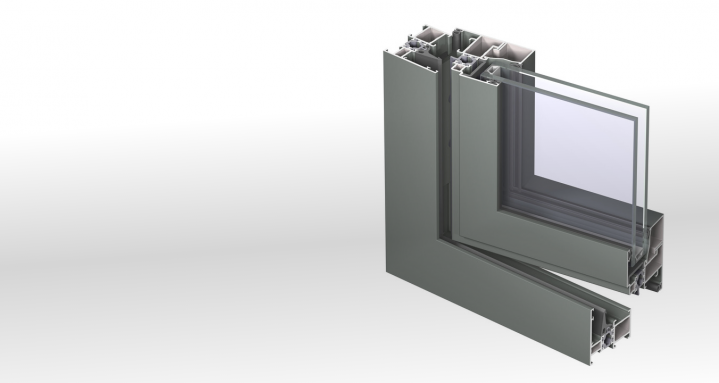

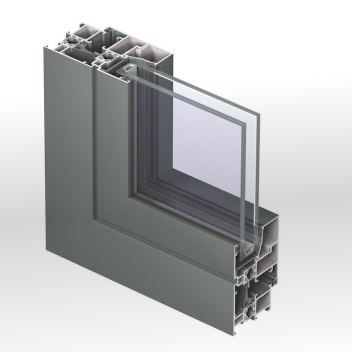

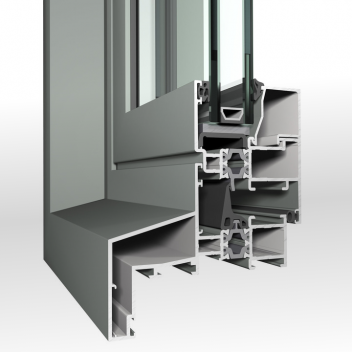

Concept System® 59 offers a complete range of insulated profiles for the construction of elegant and moderately priced aluminium windows.
The system’s limited built-in depth allows for application in many constructions, even with reduced wall thicknesses. In addition, CS 59 can comply with the burglar resistance class 2, offering a safe and secure solution.
Comfort
| Air tightness max. test pressure | 4 (600 Pa) |
| Water tightness | 9A (600 Pa) |
| Wind load resistance | C3 (1200 Pa) |
Safety
| Burglar resistance | WK2 |
| Min. Visible width frame: inward opening | 51 mm |
| Min. Visible width vent: inward opening | 33 mm |
| Min. Visible width frame-vent: inward opening | 89 mm |
| Min. Visible width frame: outward opening | 17.5 mm |
| Min. Visible width frame-vent: outward opening | 93.5 mm |
| Min. Visible width T-profile | 76 mm |
| Max. height vent | 2400 mm |
| Max. width vent | 1400 mm |
| Max. weight vent (element) | 120 kg |
| Overall system depth frame | 50 mm |
| Overall system depth vent | 59 mm |
| Rebate height | 25 mm |
| Min. Glass thickness | 4 mm |
| Max. Glass thickness | 35 mm |
| Min. Glass thickness vent | 4 mm |
| Max. Glass thickness vent | 35 mm |
