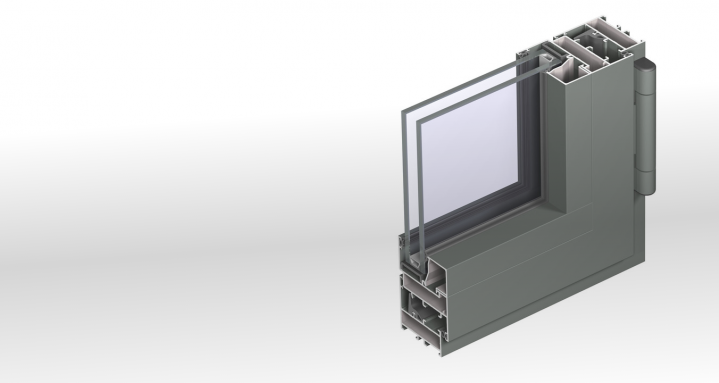

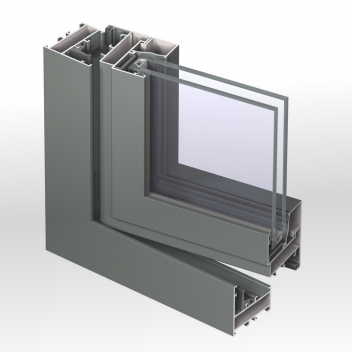

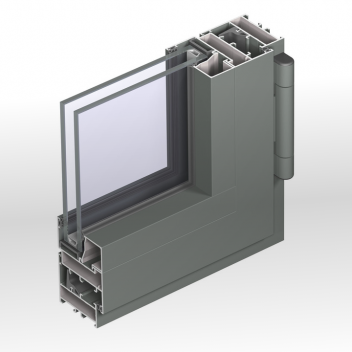

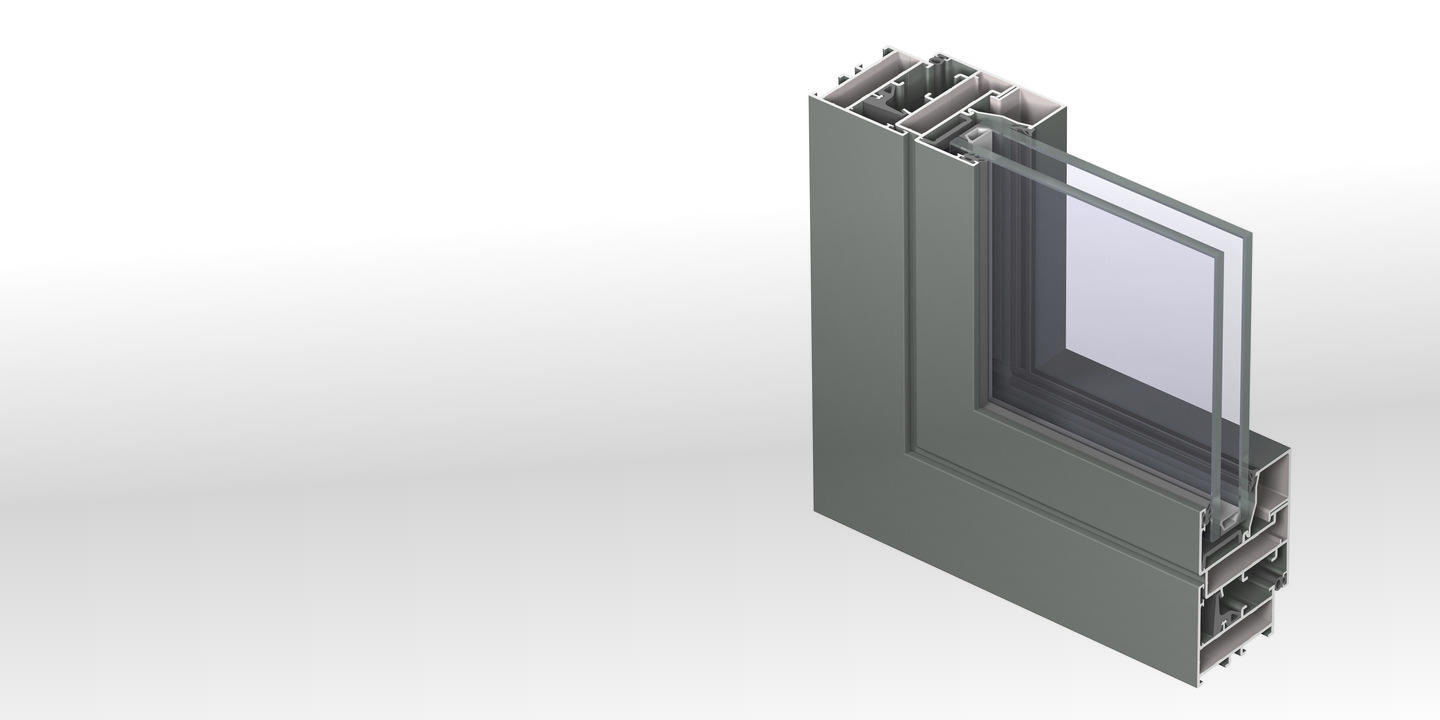

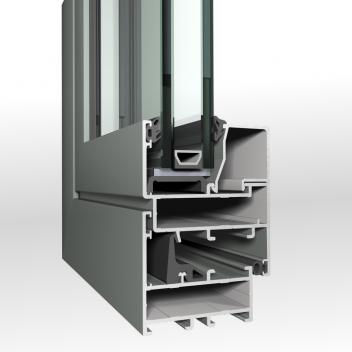

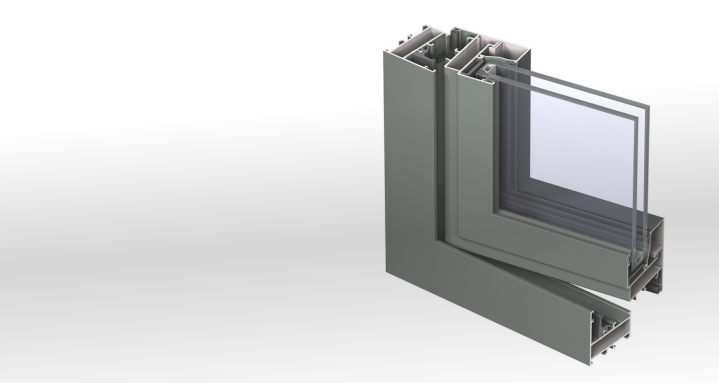

Concept System 59 'Parallel' window
Concept System® 59Pa offers an extensive range of non-insulated profiles for the construction of elegant and moderately priced aluminium windows. Therefore, CS 59Pa is the ideal system for applications in warm climates but it can also be used for the partitioning of indoor office spaces. For winter gardens, special combinations are possible with the Reynaers conservatory systems. The different design options and the large choice of colours allow a perfect match with the building style.
Furthermore CS 59Pa can comply with burglar resistance class 2, offering a safe and secure solution. As with all Reynaers systems, a 10-year guarantee is offered.
Comfort
Air tightness max. test pressure | 4 (600 Pa) |
Water tightness | E750 (750 Pa) |
Wind load resistance | C3 (1200 Pa) |
Acoustic performance | Rw(C;Ctr) = 44(-2;-4) dB |
Safety
Burglar resistance | WK2 |
Min. Visible width frame: inward opening | 49 mm |
Min. Visible width vent: inward opening | 31 mm |
Min. Visible width frame-vent: inward opening | 85 mm |
Min. Visible width T-profile | 74 mm |
Max. height vent | 2400 mm |
Max. width vent | 1400 mm |
Max. weight vent (element) | 120 kg |
Overall system depth frame | 50 mm |
Overall system depth vent | 59 mm |
Min. Glass thickness | 4 mm |
Max. Glass thickness | 35 mm |
Min. Glass thickness vent | 4 mm |
Max. Glass thickness vent | 35 mm |
