CS 59Pa
-
Ideal for warm climates

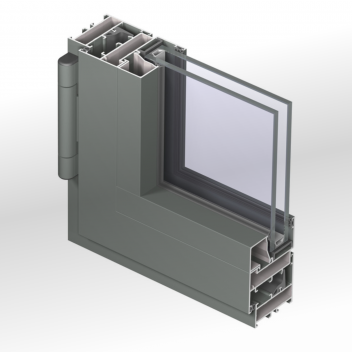

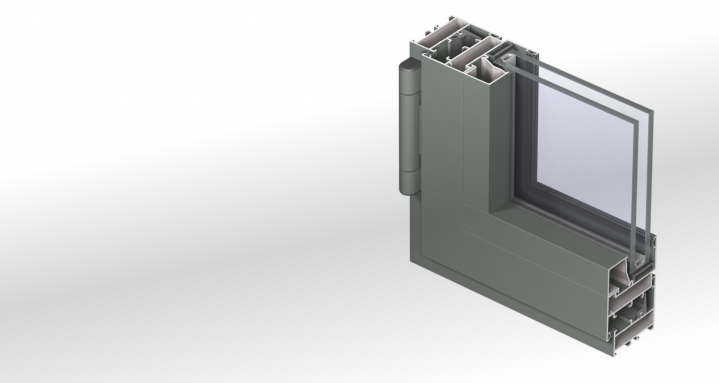

Concept System® 59 Parallel offers an extensive range of non-insulated profiles for the construction of elegant and moderately priced aluminium flush doors. CS 59Pa is the ideal system for applications in warm climates but it can also be used for the partitioning of indoor office spaces. For winter gardens, special combinations are possible with the Reynaers conservatory systems.
Comfort
| Air tightness max. test pressure | 4 (600 Pa) |
| Wind load resistance | C |
| Min. Visible width frame: inward opening | 61.5 mm |
| Min. Visible width frame-vent: inward opening | 139 mm |
| Min. Visible width frame: outward opening | 36.5 mm |
| Min. Visible width frame-vent: outward opening | 139 mm |
| Min. Visible width T-profile | 74 mm |
| Max. height vent | 3000 mm |
| Max. width vent | 1400 mm |
| Min. Glass thickness | 4 mm |
| Max. Glass thickness | 35 mm |
