A new dimension of affordable quality

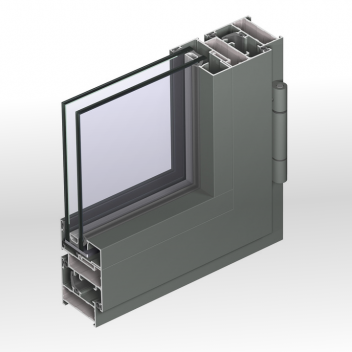

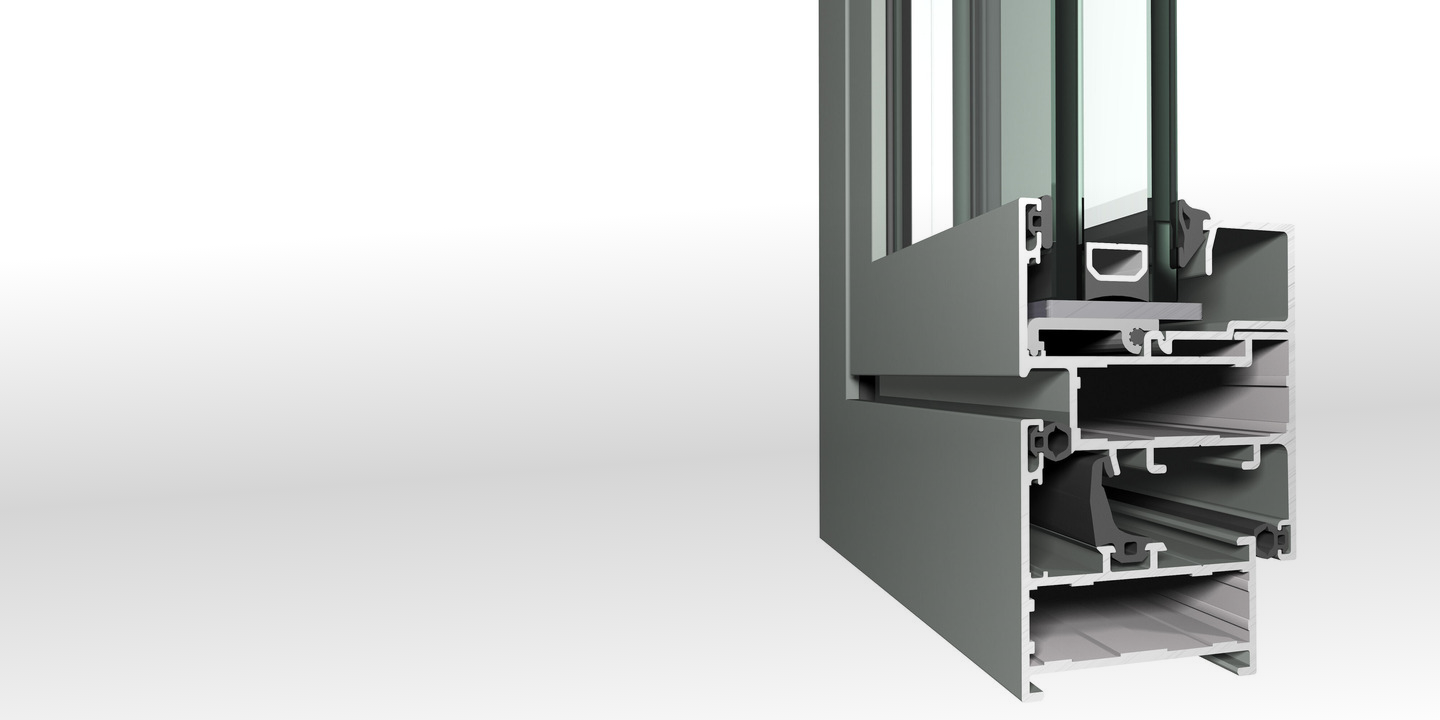

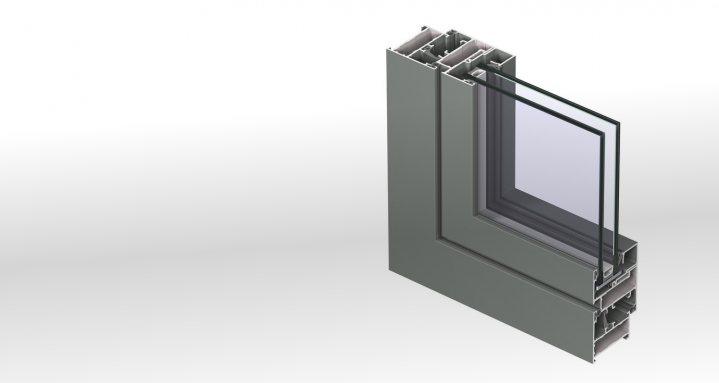

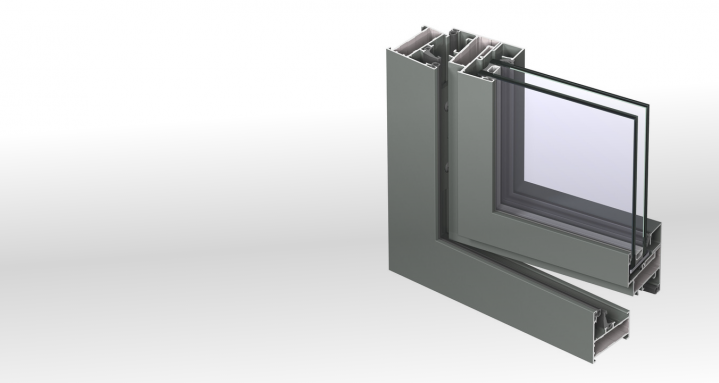

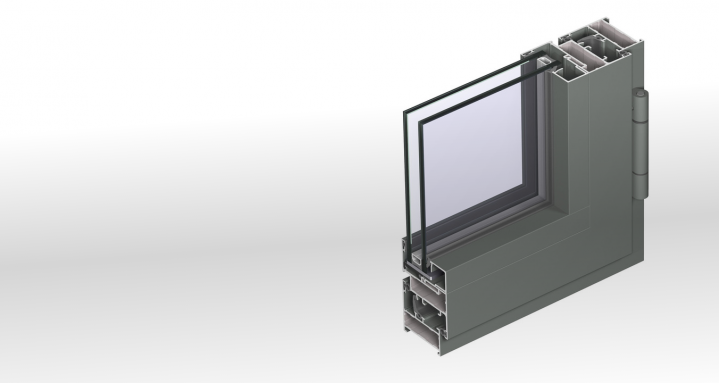

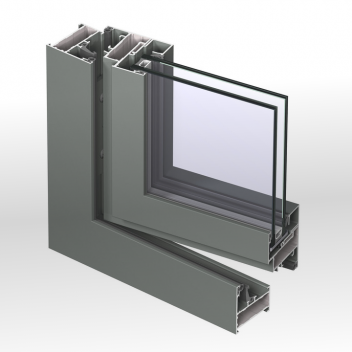

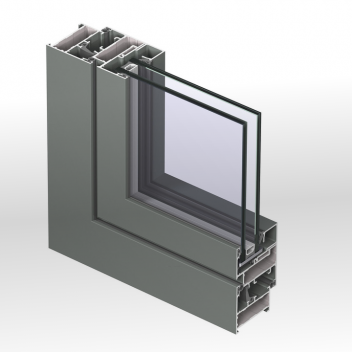

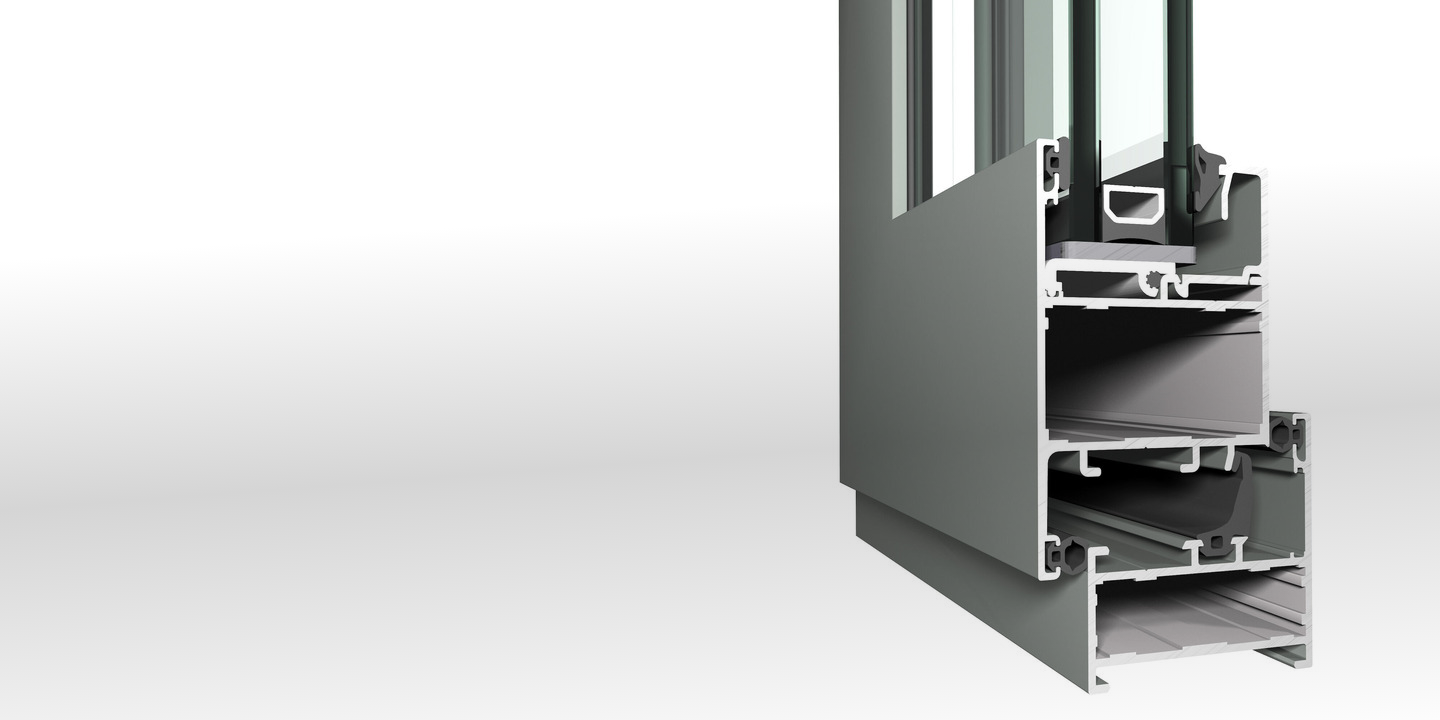

Eco System® 45Pa is a non-insulated system for inward and outward opening windows, designed according to the highest European quality standards. To guarantee superior quality and performance in every situation, the window system has three gasket levels for inward and outward opening windows. Through intelligent application, these multiple gaskets meet even the high air- and water tightness requirements of tropical regions. This simple, yet highly innovative design offers a very cost-efficient solution thanks to its optimised fabrication process.
ES 45Pa can be realised with all types of inward and outward opening windows, with an extensive choice of accessories. The numerous combinations of elements and the perfect match with the ES 45Pa door –and sliding system, make ES 45Pa extremely suitable for all types of building concepts. As with all Reynaers systems, a 10-year guarantee is offered.
Comfort
Air tightness max. test pressure | 4 (600 Pa) |
Water tightness | 9A (600 Pa) |
Wind load resistance | C3 (1200 Pa) |
Acoustic performance | Rw(C;Ctr) = 41(-1;-5) dB |
Min. Visible width frame: inward opening | 47 mm |
Min. Visible width vent: inward opening | 30 mm |
Min. Visible width frame-vent: inward opening | 84 mm |
Min. Visible width frame: outward opening | 20 mm |
Min. Visible width frame-vent: outward opening | 74 mm |
Min. Visible width T-profile | 69 mm |
Max. height vent | 2000 mm |
Max. width vent | 1000 mm |
Max. weight vent (element) | 110 kg |
Overall system depth frame | 45 mm |
Overall system depth vent | 54 mm |
Min. Glass thickness | 4 mm |
Max. Glass thickness | 42 mm |
Min. Glass thickness vent | 4 mm |
Max. Glass thickness vent | 40 mm |
