ES 45Pa
-
A new dimension of affordable quality

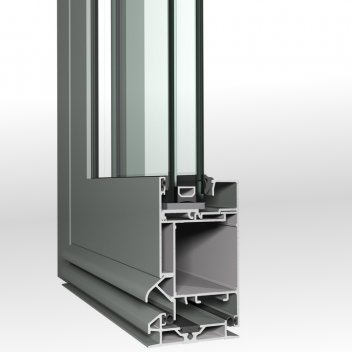

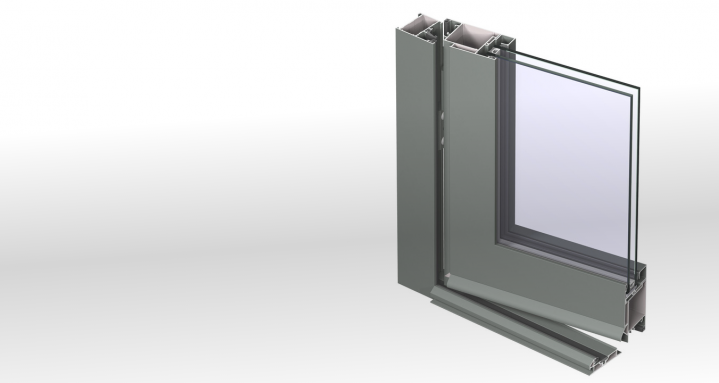

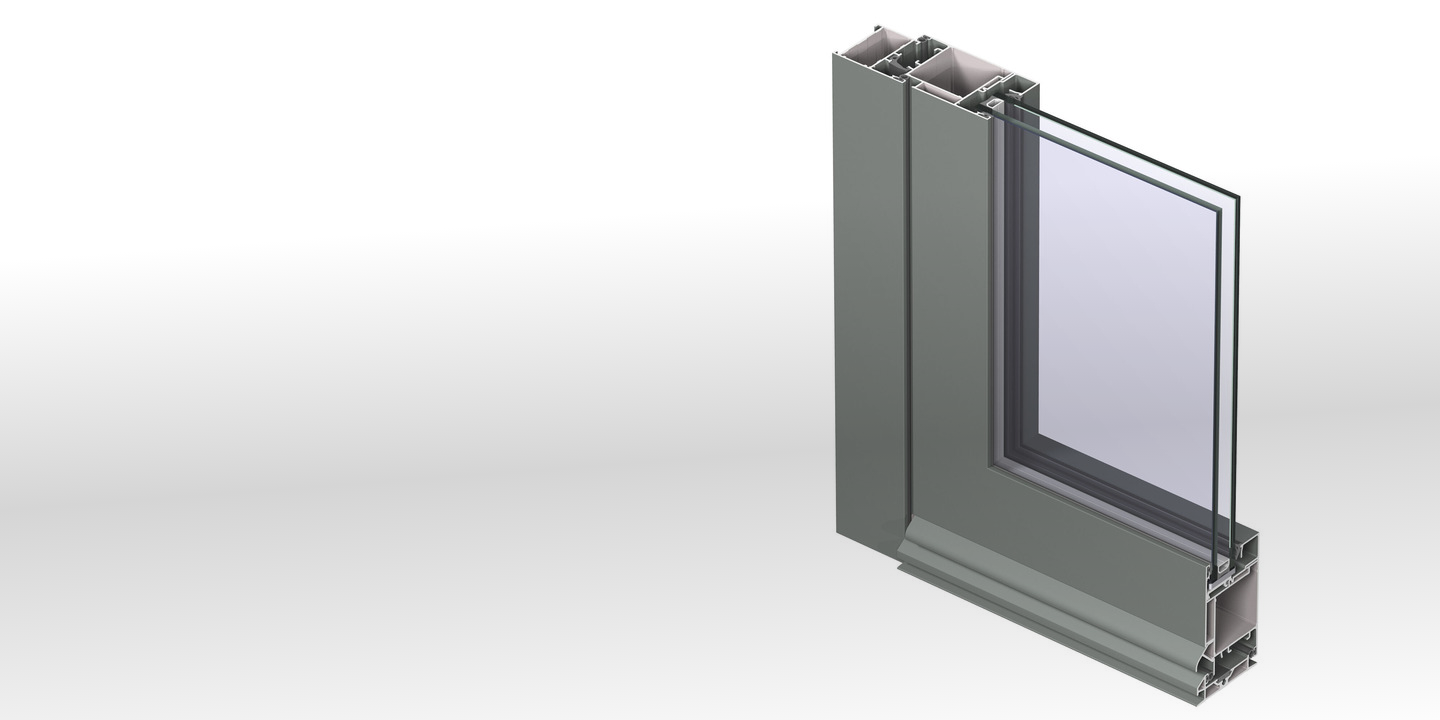

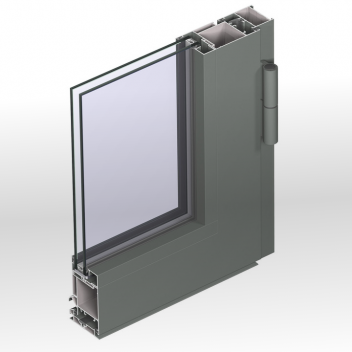

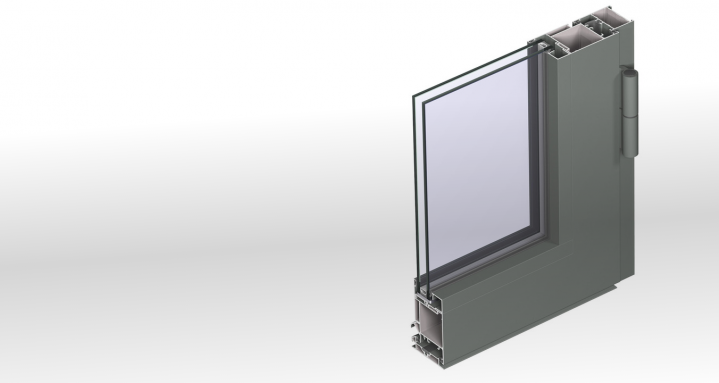

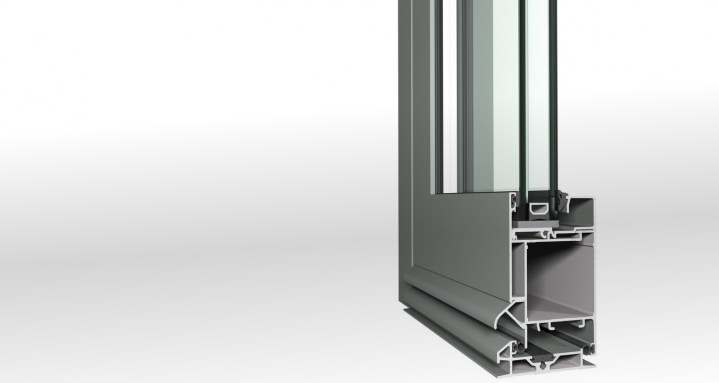

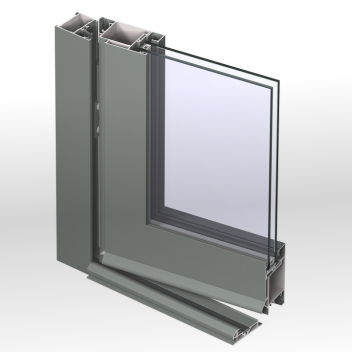

Eco System® 45Pa is a non-insulated door system for inward and outward opening window doors, designed according to the highest European quality standards.
This simple, yet highly innovative design offers a very cost-efficient solution thanks to its optimised fabrication process. As with all Reynaers systems, a 10-year guarantee is offered.
ES 45Pa can realise all types of inward and outward opening, single and double window doors. The numerous combinations of elements and the perfect match with the ES 45Pa window system, makes ES 45Pa extremely suitable for all types of building concepts.
Comfort
| Air tightness max. test pressure | 4 (600 Pa) |
| Water tightness | 7A (300 Pa) |
| Wind load resistance | C2 (800 Pa) |
| Min. Visible width frame: inward opening | 47 mm |
| Min. Visible width vent: inward opening | 61 mm |
| Min. Visible width frame-vent: inward opening | 115 mm |
| Min. Visible width frame: outward opening | 20 mm |
| Min. Visible width frame-vent: outward opening | 95 mm |
| Min. Visible width T-profile | 69 mm |
| Max. height vent | 2400 mm |
| Max. width vent | 1400 mm |
| Overall system depth frame | 45 mm |
| Overall system depth vent | 54 mm |
| Rebate height | 22 mm |
| Min. Glass thickness | 4 mm |
| Max. Glass thickness | 40 mm |
