Crafted for masters

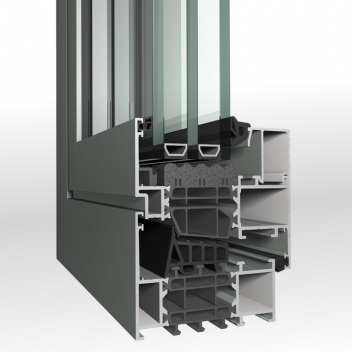

MasterLine 8 is a unique window system that combines countless design opportunities with first in class performance in terms of thermal insulation, air-and water-tightness, and production speed. The system offers a wide design range and ultimate performance regarding thermal insulation and air- and water tightness. This new generation of innovative window solutions mirrors the current architectural trend towards maximising daylight while offering ultimate insulation levels.
MasterLine 8 features 3 different levels of insulation for high insulated, low energy and even passive houses. These different levels of insulation are achieved by the integration of new and clever materials. The unique concept makes it possible to combine an extensive range of window opening types, design variants, and different levels of thermal insulation. The design variants, each with their own distinct look and feel, make MasterLine 8 suitable for any architectural style.
Comfort
Air tightness max. test pressure | 4 (600 Pa) |
Water tightness | E900 (900 Pa) |
Wind load resistance | C5 (2000 Pa) |
Acoustic performance | TuTi: Rw(C;Ctr) = 46(0;-3) dB DC: Rw(C;Ctr) = 44(-2;-4) dB |
Safety
Burglar resistance | RC2/WK2 RC3/WK3 |
Energy
Thermal insulation (Uf) | 119mm: St. 1,9 / HI 1,6 / HI+1,2 W/m²K |
Min. Visible width frame: inward opening | 53 mm |
Min. Visible width vent: inward opening | 37 mm |
Min. Visible width frame-vent: inward opening | 97 mm |
Min. Visible width frame: outward opening | 20 mm |
Min. Visible width frame-vent: outward opening | 118 mm |
Min. Visible width T-profile | 80 mm |
Max. height vent | 2800 mm |
Max. width vent | 1200 mm |
Max. weight vent (element) | 200 kg |
Overall system depth frame | 77 mm |
Overall system depth vent | 87 mm |
Rebate height | 27 mm |
Min. Glass thickness | 4 mm |
Max. Glass thickness | 58 mm |
Min. Glass thickness vent | 13 mm |
Max. Glass thickness vent | 68 mm |
