SlimLine 38
-
Light, Elegance and Comfort

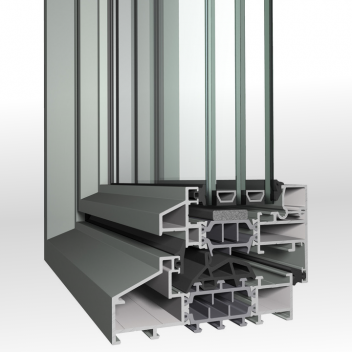

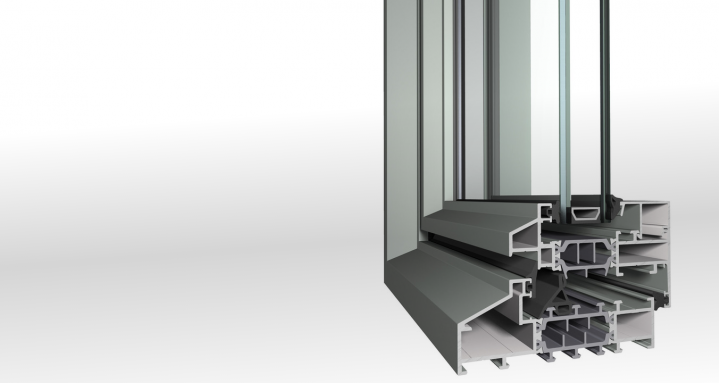

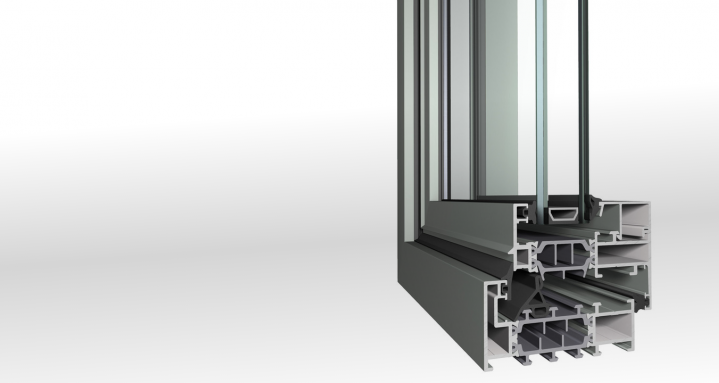

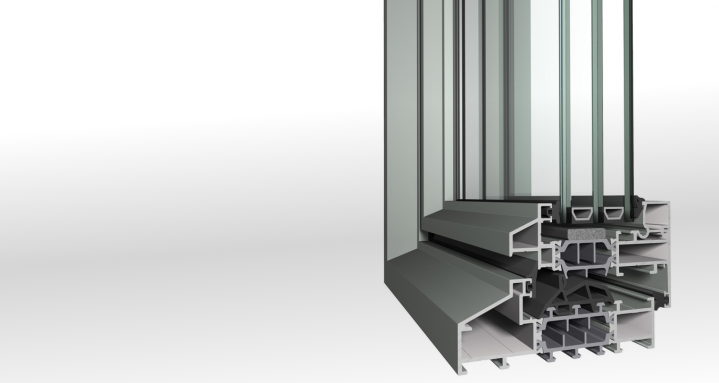

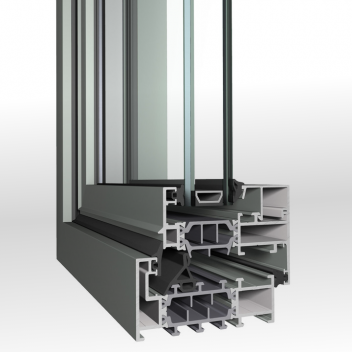

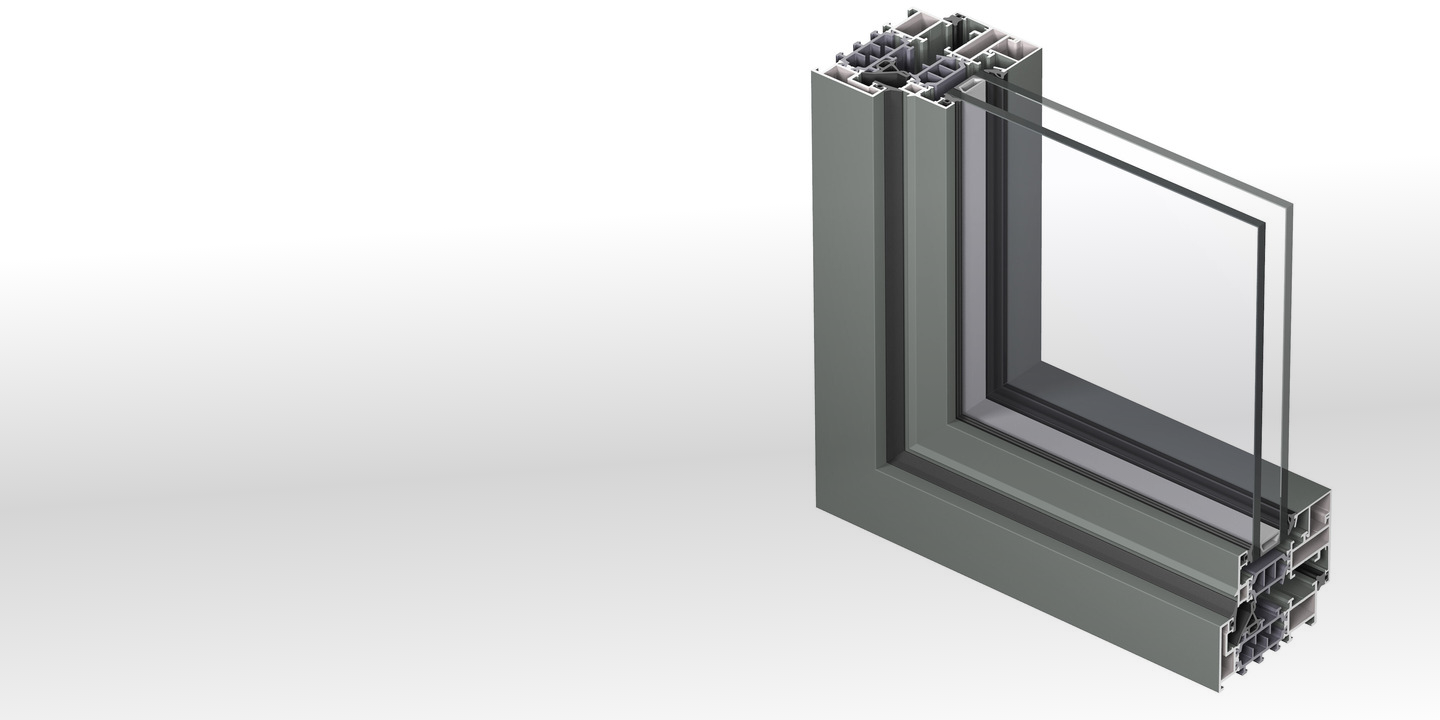

SlimLine 38 is a highly insulated system for inward and outward opening windows and doors, which combines elegance and comfort, with a unique design. This special slender steel look is the perfect solution for modern architecture and renovation of steel-framed windows, respecting the original design but offering a thermally improved solution.
The SL 38 system is available in 3 different minimalistic design variants, Classic, Ferro and Cubic, to perfectly match the architectural aspect of the building. The windows and doors can be provided with double and triple glazing without losing the ultra-slim look.
In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.
Comfort
| Air tightness max. test pressure | 4 (600 Pa)/td> |
| Water tightness | 9A (600 Pa)/td> |
| Wind load resistance | C4 (1600 Pa)/td> |
| Acoustic performance | Rw(C;Ctr) = 45(-1,-5) dB |
Safety
| Burglar resistance | RC2/WK2 |
Energy
| Thermal insulation | (Uf) 1,9 W/m²K |
| Min. Visible width frame: inward opening | 33.5 mm |
| Min. Visible width vent: inward opening | 23 mm |
| Min. Visible width frame-vent: inward opening | 67 mm |
| Min. Visible width frame: outward opening | 29 mm |
| Min. Visible width frame-vent: outward opening | 60.5 mm |
| Min. Visible width T-profile | 48 mm |
| Max. height vent | 2800 mm |
| Max. width vent | 1200 mm |
| Max. weight vent (element) | 170 kg |
| Overall system depth frame | 99 mm |
| Overall system depth vent | 86 mm |
| Rebate height | 13.5 mm |
| Min. Glass thickness | 16 mm |
| Max. Glass thickness | 55 mm |
| Min. Glass thickness vent | 16 mm |
| Max. Glass thickness vent | 55 mm |
| Glazing method | Dry glazing with EPDM or neutral silicones |
| Thermal break | Fibreglass Reinforced Polyamide Strips |
