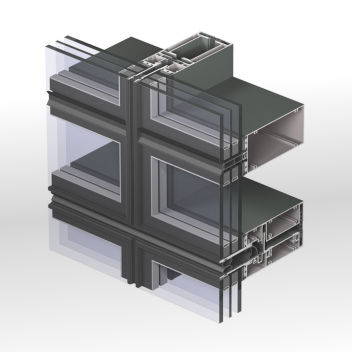

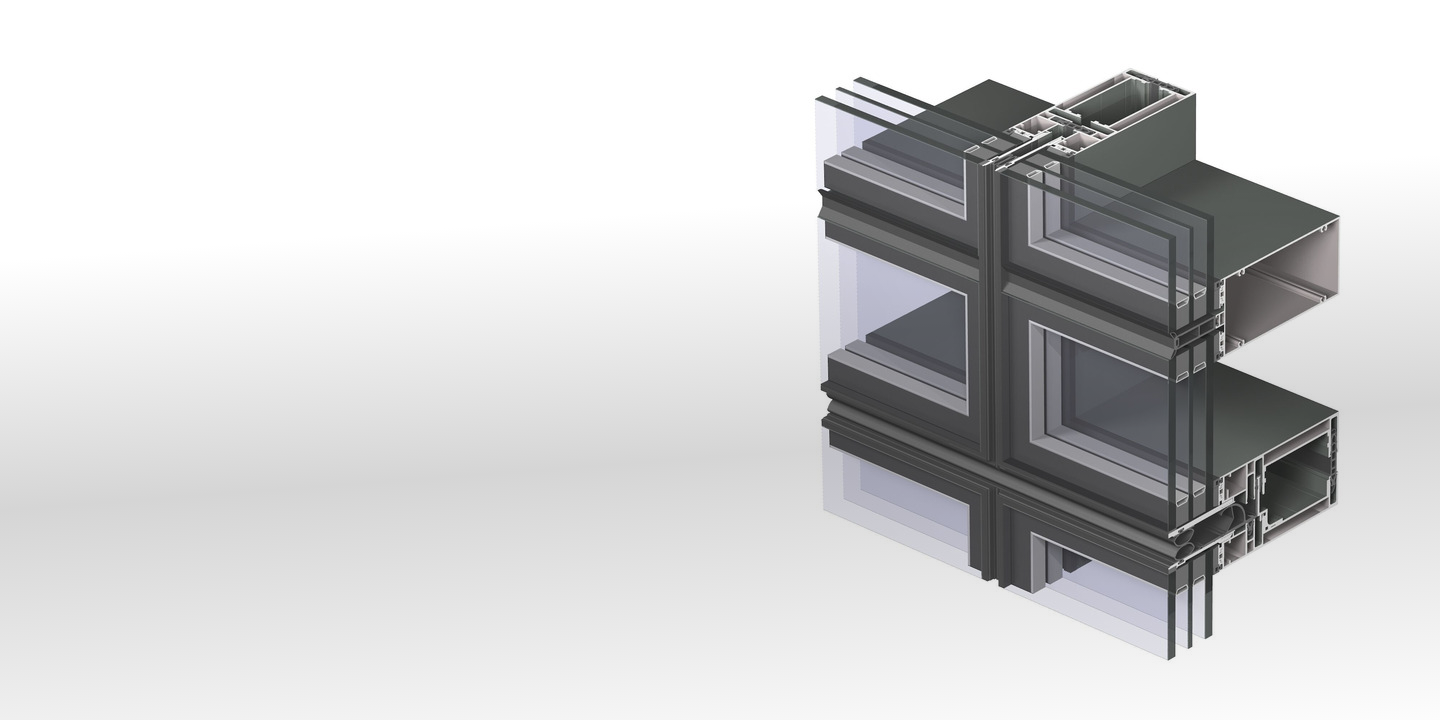

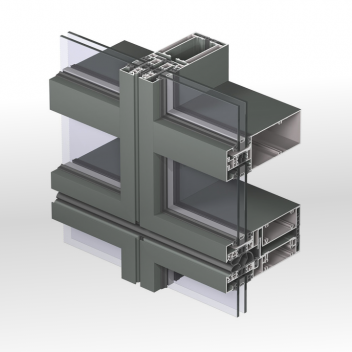

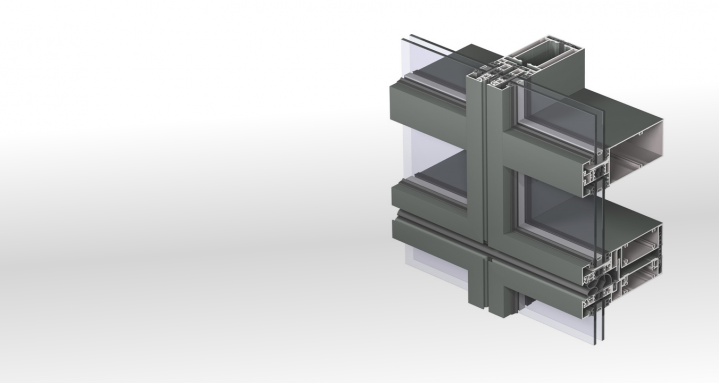

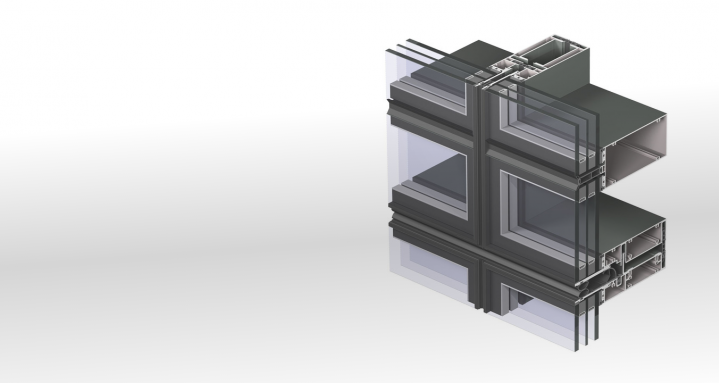

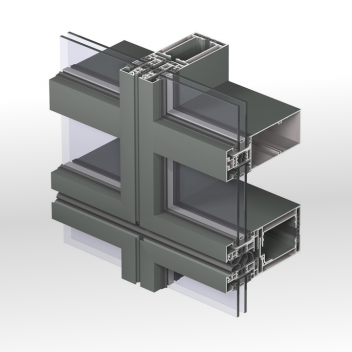

Element Façade 7
-
Today’s buildings are designed to meet ecological, technical, functional, aesthetic and financial requirements.
Construction environments are stretching existing systems to their limits, which is why our newest ElementFaçade 7 goes beyond the needs of today. Reynaers Aluminium’s Group Development team distilled years of experience and extensive know-how within several departments into an intelligent design.
ElementFaçade 7 has a completely redesigned anchor to allow easy and fast installation and adjustment, as well as increased tolerances to compensate ever-growing live loads. It also optimises industrialised fabrication by introducing the straight-cut corner connection, and further increases installation speed by enabling even larger double-element assemblies.
Next to that, ElementFaçade 7 enables easy glass pane replacement in both structural glazing and glazing bead solutions, for both the element and the spandrel area. The sum of all this emphasises that this system is ready for the buildings of the future.
Comfort
| Air tightness max. test pressure | 1200Pa |
| Water tightness | 1A (0 Pa) |
| Wind load resistance | 0017 |
| Acoustic performance | Rw(C;Ctr) = 43(-2;-4) dB |
Energy
| Thermal insulation | (Uf) 1,3 W/m²K |
| Visible width interior | 75 mm |
| Visible width exterior | 75 mm |
| Max. Inertia mullions (lx: wind load) | 514 cm⁴ |
| Min. Inertia transoms (lx: wind load) | 225 cm⁴ |
| Max. height vent | 2000 mm |
| Max. width vent | 2500 mm |
| Rebate height | 12.5 mm |
| Max. height element | 3700 mm |
| Min. Glass thickness | 26 mm |
| Max. Glass thickness | 63 mm |
| Glazing method | 0003 0006 0007 0010 |
