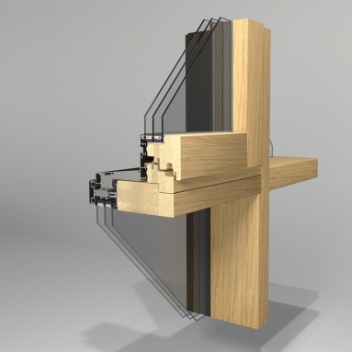

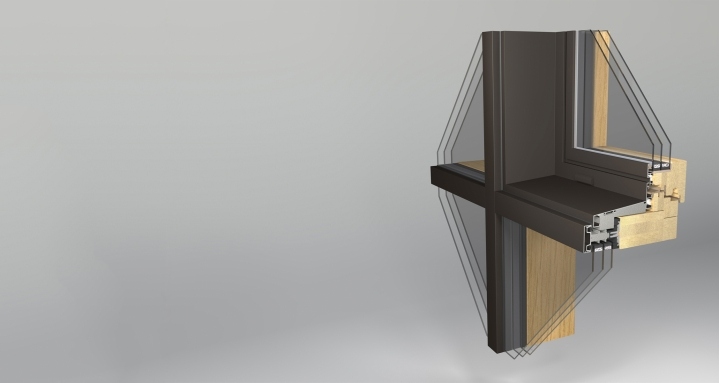

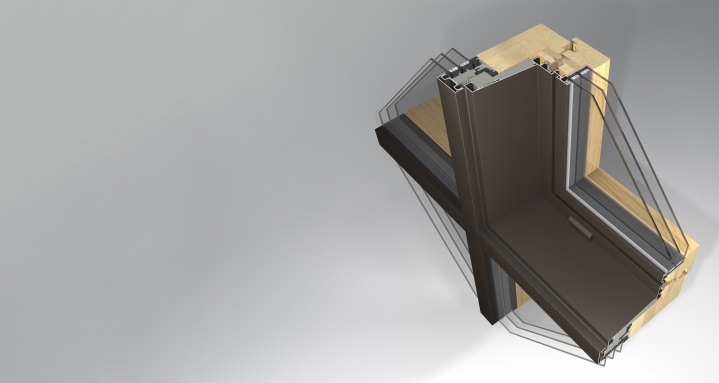

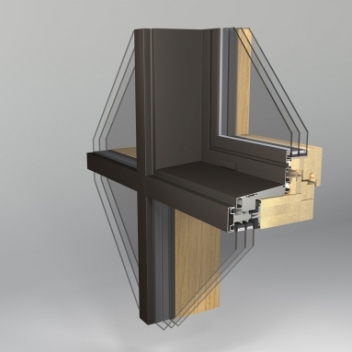

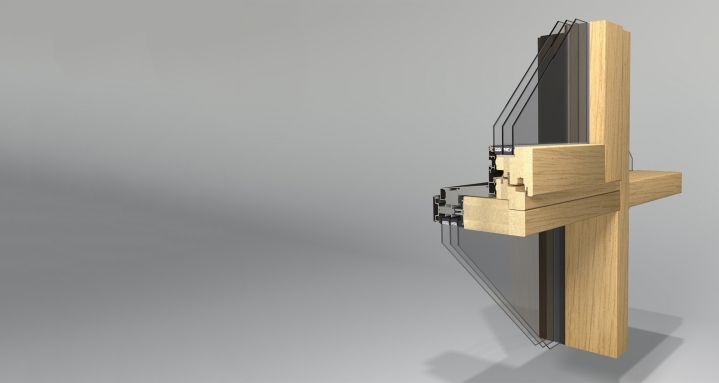

Gama 78 Portal
-

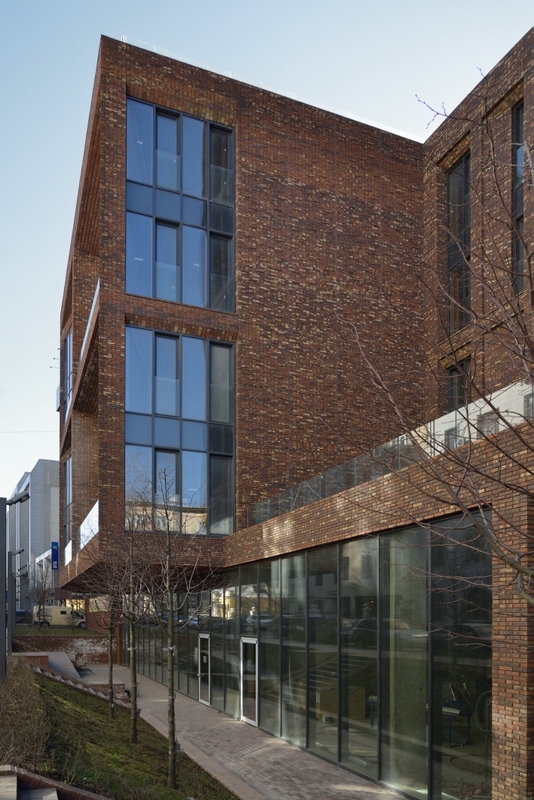

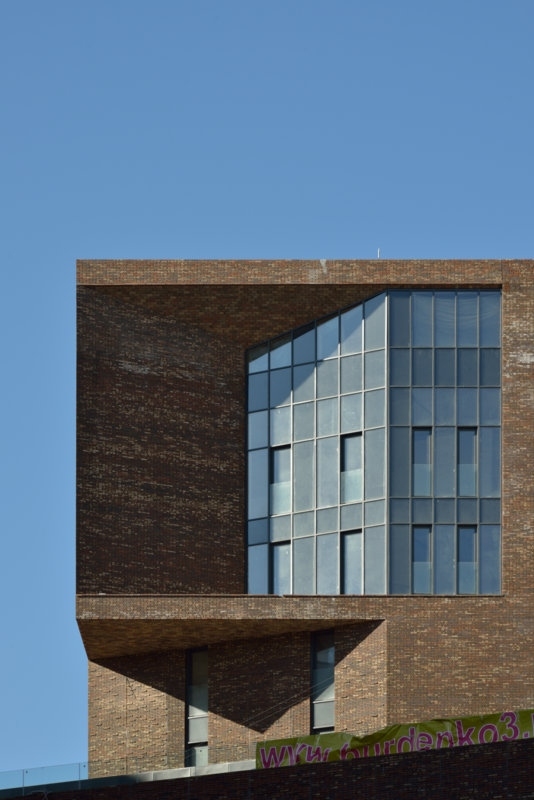

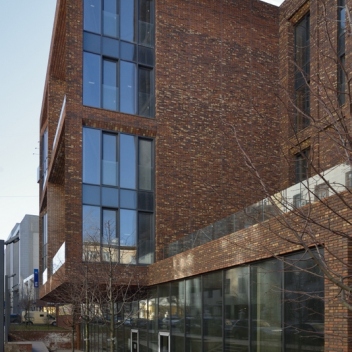

Extraordinary façade structures designed together with technological partner Gutmann. This system is special because it can be installed in different locations and facade depths.
It fits with modern architecture and perfectly suits for high buildings.
| Uw | 0.91 W/m2*K** |
| Rw | 35 dB** |
| Pane | 2–3 glass unit |
| Warranty | 5 years.* |
* The warranty for window outdoor topping is provided subject to the type of wood and painting.
** Uw and Rw calculated for a window:
Measurements: height 1480 mm, width 1230 mm.
Type of opening: internal opening, right.
Bindings: ROTO. Fastening: 7 fixing points in perimeter.
Gaskets: SCHLEGEL foam. Sealing sets: 2.
Pane: glass unit, 4-14Ar-4-14Ar-4 (two glasses covered with selective openings filled with argon gas, differential frames are aluminium).
| Material used: | |
| Types of wood: | tenon pine, non-tenon pine, meranti, larch, gumtree, oak, etc. |
| Painting: | Teknos/Finland/ |
| Aluminium profiles: | Gutmann/Germany/ |
| Bindings: | Roto/Germany/G. U./Germany/ |
| Glasses: | Saint-Gobain/France/ |
| Gaskets: | Schlegel Q-Lon/Germany/ |
| Handles: | Hoppe Atlanta/Germany |
