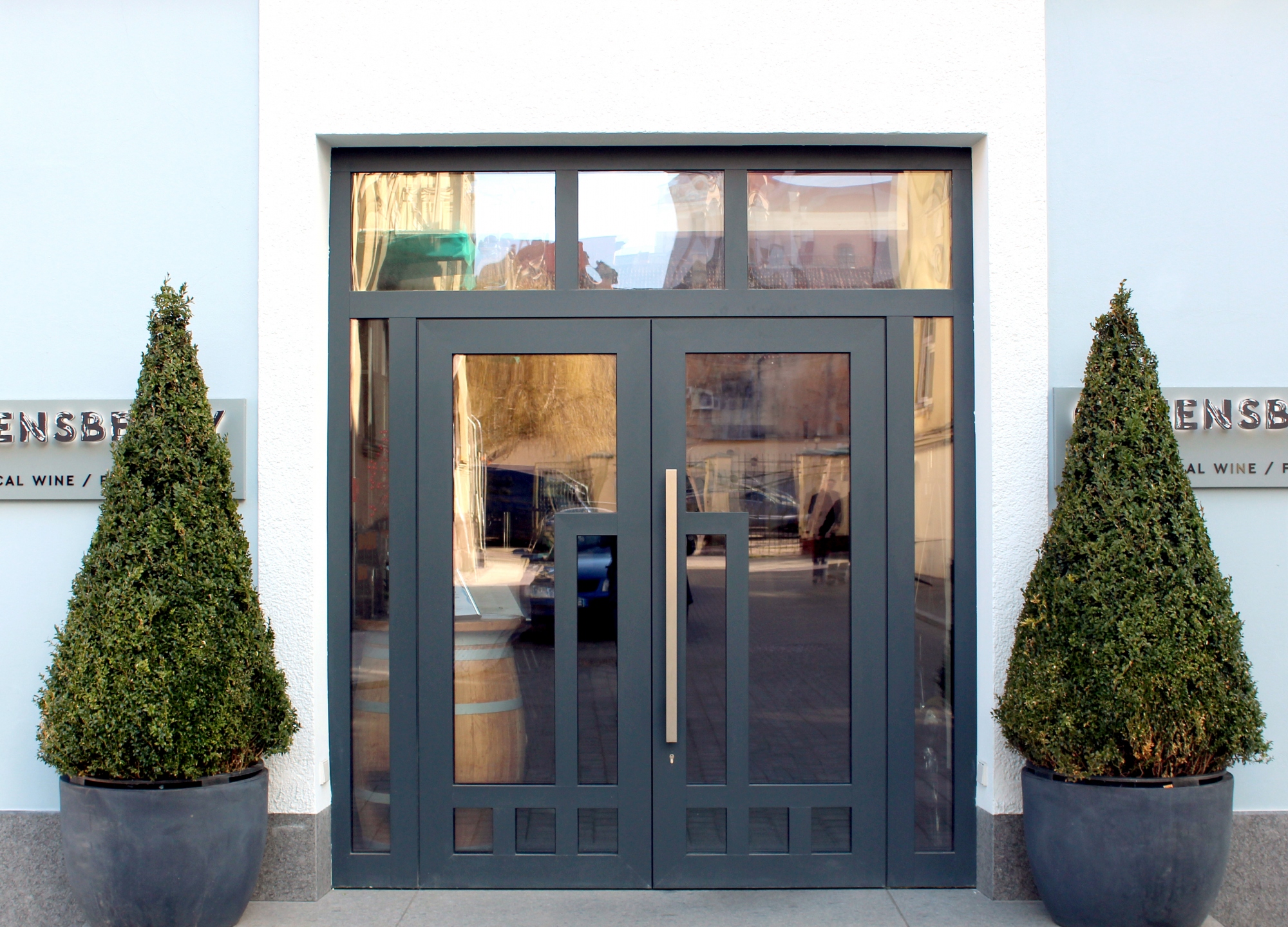

External doors of extraordinary design for modern architecture.

The door leaf and frame are in one place on the outside. We can also provide arched exterior doors and windows as well as sliding doors of similar design. The elements of this system can be integrated very well in wooden and glass façade systems. Glass Unit: up to 62mm.

Uw 0.91 W/m2*K**
Rw 35 dB**
Pane 2–3 glass unit
Warranty 5 years.*

* The warranty for window outdoor topping is provided subject to the type of wood and painting.

** Uw and Rw calculated for a window:

Dimensions: according to customer's specification.
Type of opening: internal opening, right.
Bindings: ROTO. Fastening: 7 fixing points in perimeter.
Gaskets: SCHLEGEL foam. Sealing sets: 2.
Pane: glass unit, 4-14Ar-4-14Ar-4 (two glasses covered with selective openings filled with argon gas, differential frames are aluminium).

Material used:
Types of wood: tenon pine, non-tenon pine, meranti, larch, gumtree, oak, etc.
Painting: Teknos/Finland/
Aluminium profiles: Gutmann/Germany/
Bindings: Roto/Germany/G. U./Germany/
Glasses: Saint-Gobain/France/
Gaskets: Schlegel Q-Lon/Germany/
Handles: Hoppe Atlanta/Germany
